Performance Features

Frequency range:

902 - 928 MHz

Sensitivity:

-15dBm (reading range reach over 10m)

Chip:

Alien H3                                 Monza R6

Protocol supported:

ISO 18000-6C, EPC global C1Gen2

Function:

Read / Write

Chip Features

Alien H3                                 Monza R6

E P C :

96-EPC                                  96-EPC

Chip memory :

512 User Bits                             Non

T I D:

96 bits                                   96 bit

Access password:

32 bits                                   Non

Kill password:

32 bits                                   Non

Data retention:

10 years                                 10 years

Write endurance:

100,000 cycle                            100,000 cycle

Mechanical Features

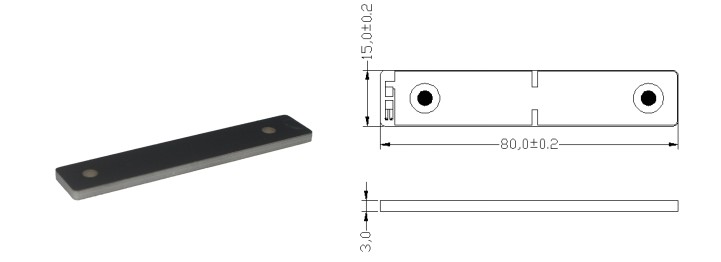

Size:

80mm x 15mm x 3mm

Material of shell:

PCB,3M adhesive

Color:

Black

Weight:

5g

Installation method :

3M adhesive

Protection class:

IP65

Operating Temperature :

-20℃ to +85℃

Applications

Logistics, tobacco, metal rack and metal goods management, gun control, medical equipment management and etc.
