BRT-04 ceramic anti-metal tag is designed specifically for complex metal environments. It has the advantages of large reading distance, high sensitivity, small size, easy to install. It is especially suitable for a variety of metal environments, easy to use in metal asset equipment management, gun control, medical equipment management, logistics and etc.
Performance Features |
|
Frequency range: |
920 - 925 MHz |
Sensitivity: |
-15dBm (reading range reach 3m) -18dBm |
Chip: |
Alien H3 Monza R6 |
Protocol supported: |
ISO 18000-6C, EPC global C1Gen2 |
Function: |
Read / Write |
Chip Features |
|
|
Alien H3 Monza R6 |
E P C : |
96-EPC(can be extended to 496bits) 96-EPC |
Chip memory : |
512 User Bits 48bits(only)+32 bits=96 bits |
T I D: |
64 bits 96 bit |
Access password: |
32 bits 32 bits |
Kill password: |
32 bits 32 bits |
Data retention: |
10 years 10 years |
Write endurance: |
10,000 cycle 10,000 cycle |

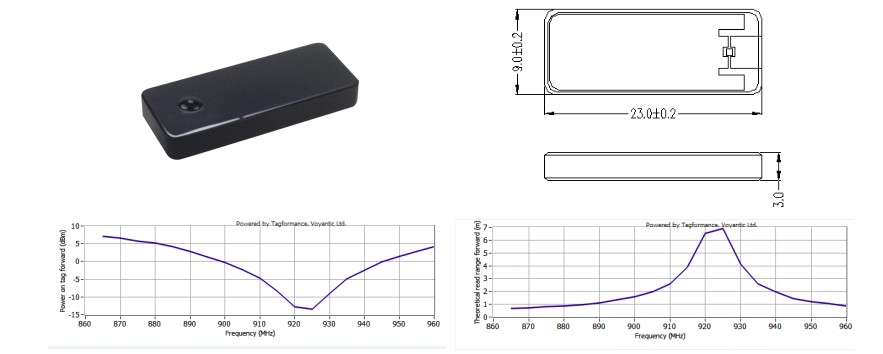

Mechanical Features |
|
Size: |
23mm x 9mm x 3mm |
Material of shell: |
Ceramic, Silver, 3M adhesive |
Color: |
Black |
Weight: |
3.25g |
Installation method : |
3M 4930adhesive |
Protection class: |
IP65 |
Operating Temperature : |
-20℃ to +85℃ |
Applications |
|
Logistics, tobacco, metal rack and metal goods management, gun control, medical equipment management and etc. |
