UHF RFID Antenna - 6dbic Circularly Polarized UHF Antenna BRA-02CR
Consult now
BRA-02CR Antenna
BRA-02CR Antenna is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.
Electrical Properties: It is a general antenna for UHF RFID applications with high gain and low VSWR.
Mechanical Properties: pleasing appearance with small size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.
| Frequency Range | 902MHz～928MHz(865～) |
| VSWR | ≤1.3:1 |
| Gain | > 6 dBic |
| H side HPBW | 90° |
| E side HPBW | 90° |
| Polarization | Circular Polarization |
| Relative humidity | 5%～95% |
| Impedance | 50±1Ω |
| Connector Type |
SMA-50KFD Female |
| Size | 128mm×128mm×20mm |
| Weight | 0.3kg (bracket excluded) |
| Material | Engineering plastics ASA, aluminum |
| Color | Milk-white |
| Production Class | IP67 |
| Operating Temperature | -40℃~+ 85℃ |
| Storage Temperature | -40℃~+ 85℃ |

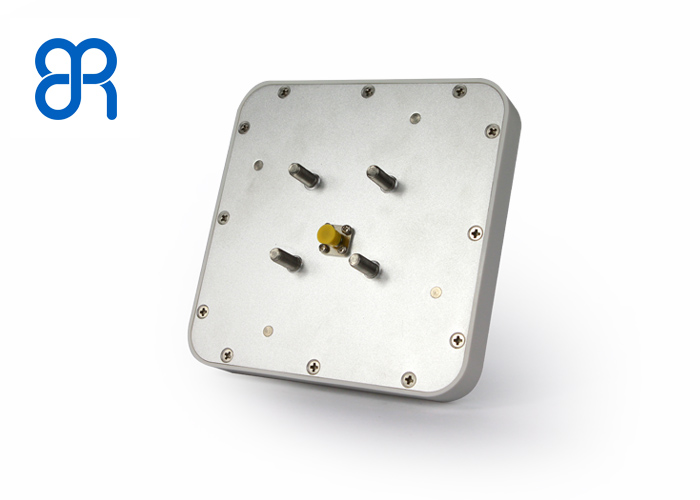

Figure 1. Antenna Photo
BRA-02CR Antenna can be mounted on any steel frame or column with its built-in bracket or user's bracket and be connected with reader through coaxial cable. It can be installed horizontally or vertically according to the bracket's position. The antenna tilt can be adjusted according to the actual applications.
Antenna bracket is an optional accessory and customers can choose it according to actual need.

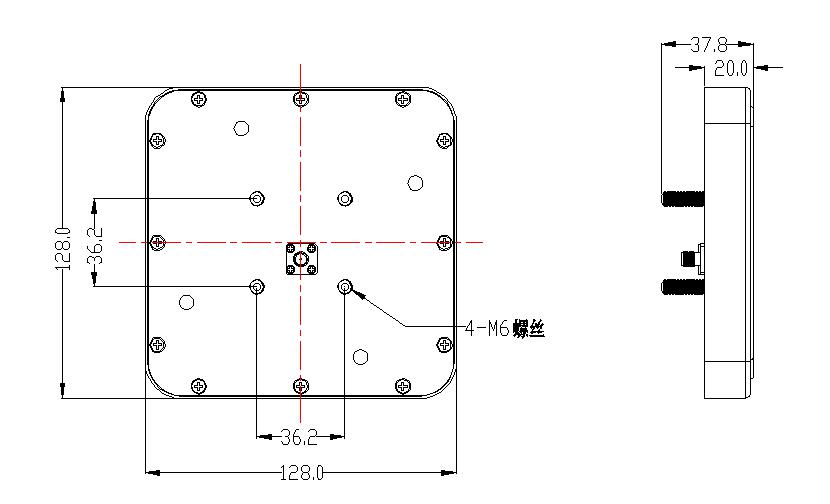

Figure 2. Mounting Dimensions
BRA-02CR Antenna is circularly polarized directional antenna. Attention should be paid to adjusting the antenna tilt to obtain the optimal reading performance.
BRA-02CR Antenna can be used outdoors, but not suitable for use in acid or alkali environment.
