Product Function and Features

Electrical Properties: It is a general antenna for UHF RFID applications with high gain , low VSWR, broad axial ratio and etc.

Mechanical Properties: circular polarized UHF RFID antenna can be widely used, side feed design, pleasing appearance with small size, sophisticated technique and easy to install.

Product advantage: low profile, excellent VSWR and axial ratio parameter, anti-UV aging and high protection class.

Product Applications

BRA-01SR Antenna is of convenient application in middle-distance parking management system, archives management, logistic management, asset management, storage management, personnel management and other IoT fields. Applications: warehouse, logistics distribution center, airport, hospital, logistics terminal, goods transfer belt, file cabinet and etc.

Performance Specifications

Mechanical Specifications

Figure 1. Antenna Photo

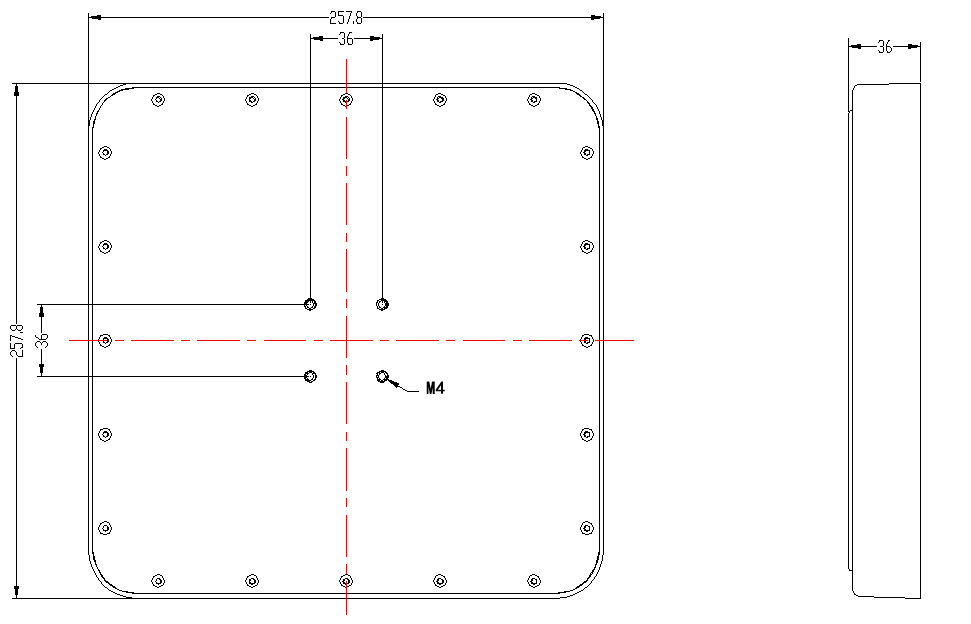

Mounting dimensions

Mounting

BRA-01SR Antenna can be mounted on any steel frame or column with 3M adhesive or customized bracket and be connected with reader through coaxial cable. It can be installed easily according to the bracket's position. The antenna tilt can be adjusted according to the actual applications.

Antenna bracket is not original accessory.
