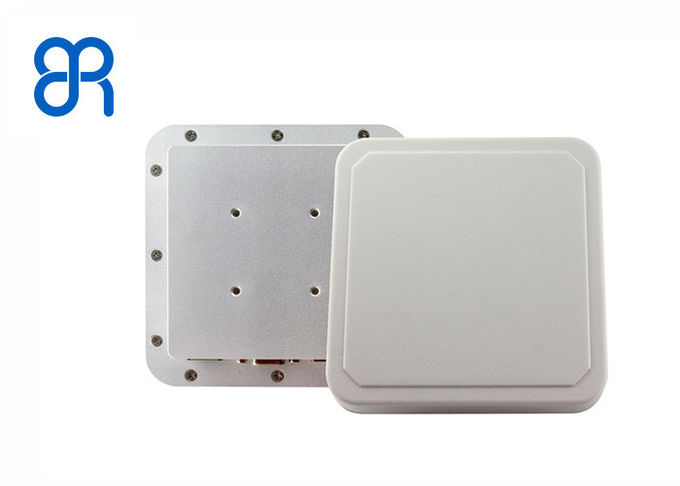

BRD-KH02 is a small UHF RFID reading and writing device with integrated antenna and reader. It supports ISO18000-6C two protocols. The working frequency range covers national standard dual frequency 920MHz～925MHz, 840MHz～845MHz and FCC, 902MHz～ 928MHz and ETSI, 865MHz ~ 868MHz, output power 0dBm ~ 33dBm optional, with small and light, multi-interface, long recognition distance, fast speed, high accuracy, strong anti-interference ability, excellent protection performance and easy installation and use.

typical application

 Intelligent vehicle management such as vehicle access control, parking lot, automatic car weighing industry, etc.;
 Production automation, visual management, etc.;
 Logistics industry such as container management, pallet management, etc.;
 Electronic tickets and personnel access;
 Assets out of the warehouse management, etc.

Brief introduction

1,UHF RFID Industrial integration Reader uses R2000 chips, It max power output is 30dBm

2,with an 6dbi built-incircular polarized antenna, reading distance can reach 6 meters

3,maximum identifying speed can reach 400 tags/sec

4,Many external ports, Including network interface, RS232, GPIO_IN*4, GPIO_OUT*4, RS485, wiegand, CAN, relay, can meet different client’s requirement

5,POE power supply mode and 12V DC is supported

6,With inside hardware watch dog and Protection circuits ,it supports variousapplication scenarios and situations,including, but not limited to,industrial manufacture

Technical data

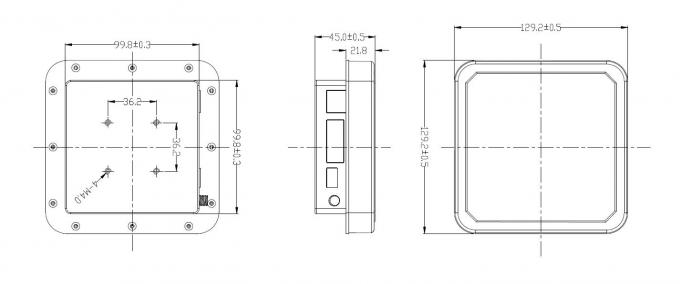

Appearance and structure

• Size:128×128×45mm
• Weight:500g

Environment requirement
